Report item
Item specifics
  • Brand Name: G-NiceRF
  • Model Number: RF4463F30-433
  • Frequency Range: : 315/433/470/868/915 /Customizable 142-1050 MHZ
  • Sensitivity up to: -126 dBm
  • Maximum output power:: +30dBm
  • Data transfer rate: 0.1-1000 kbps
  • Power supply : 3.3-6.5 V
  • Operating Temperature Range:: -40 ~ + 85 °C
  • transmit and receive data : 64/128byte
  • Size:: 38*20*4mm
Product Description

2pcs 1W Si4463 Embedded FSK 433MHz TX/RX Module RF4463F30+2pcs Rubber Antenna+2pcs SMA Head extension cable


RF4463F30 is 1W RF module embedded with amplifier and LNA circuit. High quality of component, tightened inspection and long term test make this module reliable for long time, long distance communication in varies environment. RF4463F30 adopts Silicon Lab Si4463 RF chip, which is a highly integrated wireless ISM band transceiver (EzradioPro2). The features of  high sensitivity (-122 dBm), +30 dBm output power, 10PPM crystal, and good RF matching circuit make this module work well in hot/cold environment with reliable communication and long distance.
  • Frequency Range:315/433/470/868/915/Customizable 142-1050 MHZ
  • Sensitivity up to -126 dBm
  • Maximum output power: +30dBm
  • 10mA@receiver status
  • Data transfer rate: 0.1-1000 kbps
  • 3.3-6.5 V Power supply
  • Ultra-low consumption shutdown mode
  • Digital received signal strength indicator /RSSI
  • Timed wake-up function
  • The antenna automatically match and two-way switch control
  • Configurable packet structure
  • Preamble detection
  • 64/128byte transmit and receive data  register FIFO
  • Low-power detection
  • Temperature sensor and 8-bit
  • analog-to-digital converters
  • Operating Temperature Range:-40 ~ + 85 °C
  • Integrated voltage regulator
  • Frequency hopping
  • Power-on reset function
  • Built-in crystal adjustment function

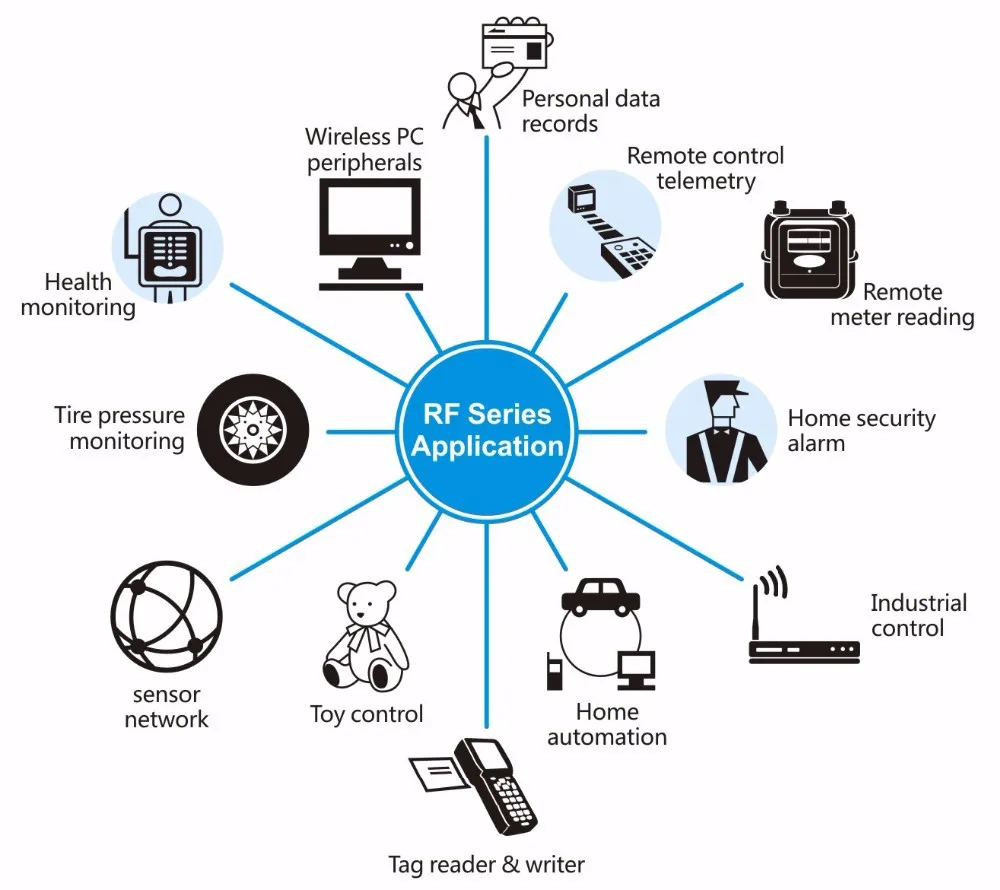

  • Remote control
  • Remote meter reading
  • ndustrial control
  • home automation remote sensing
  • Individual data records
  • sensor network
  • tire pressure monitoring
  • health monitoring
  • wireless PC peripherals
  • tag reading and writing
Electrical Specifications
4.  Electrical Specifications
Product Show
What dose include in the package:
  • 2pcs RF4463F30 module in 433MHz
  • 2pcs Spring Antennas
  • 2pcs SMA extension wire
5.  Schematic
6.  Pinout
Machanism dimensions:
              7.  Machanism dimensions
