Item specifics
  • Brand Name: G-NiceRF
  • Model Number: SV651 kit2
  • Interface:: TTL/RS232/RS485 ( Optional )
  • Frequency Range: : 433/470/868/915 MHz (Customizable 240-930 MHZ)
  • Operating voltage range: 3.3~6.5V
  • Reveive current: 25mA @ TTL / 32.7mA @ 232 / 34mA @ 485
  • Emission current: 350mA @ 27dBm
  • Sleep current: <5uA
  • Transmit power range: 20~27dBm
  • Receiving sensitivity: -121dBm
  • Size: 50.4*39*7.6
  • Operating Temperature Range: -40~+85'C
Product Description



2pcs/lot  SV651  500mW  3km long distance Si4432 868MHz RS485 RF Transmitter Module


1. Descriptions:

SV651 is a high-power, highly integrated wireless data transmission module, using high-performance Silicon Lab Si4432 RF chip. Low receiver sensitivity, coupled with industry-leading output power of 500 mW guarantee expand the scope and improve the link performance. Module provides a multi-band multi-channel and network ID to reduce interference during transmission to improve the transmission performance. Users can modify the software or online via PC serial port settings and the RF parameters


 2. Features:

  •  433/470/868/915 MHz (Customizable 240-930 MHZ)
  •  Interface: TTL/RS232/RS485 ( Optional )
  •  40 channels
  •  4 bytes net ID
  •  2 bytes node ID
  •  Multiple air data rate
  •  GFSK modulation
  •  Bi-Direction communication
  •  Parameters configurable
  •  Parameters saved even powered off
  •  Sensitivity: -121 dBm
  • Max output power:500mW
  • Voltage:3.3~6.5V
  • Temperature:-40 ~ +85 °C


3. Application:

  • Remote control telemetry
  • Security system
  • Industrial data acquisition
  • Home automation
  • Wireless data communication
  • Access system
  • Robot control
  • Wireless PC peripherals





4.Block Diagram:





 5. Specification:

Note:High quality 3.3V LDO is integrated,and Pin CS / SET is 3.3V interface.TXD/RXD is also 3.3V for SV651-TTL




6.Application circuit





7. Pin definition




8. Mechanical Dimension




This wireless module matches kinds of antenna:    to learn antenna, please visit here:
8.Product Picture:

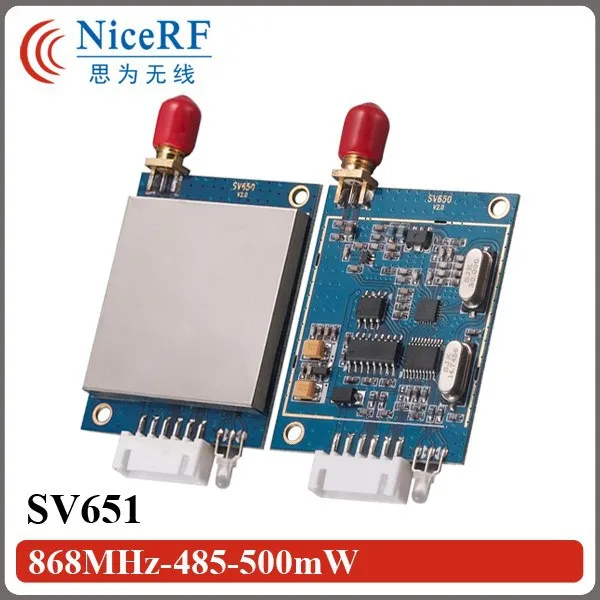

SV651-Si4432 chip 500mW 433MHz
SV651-Si4432 chip 500mW 433MHz-2

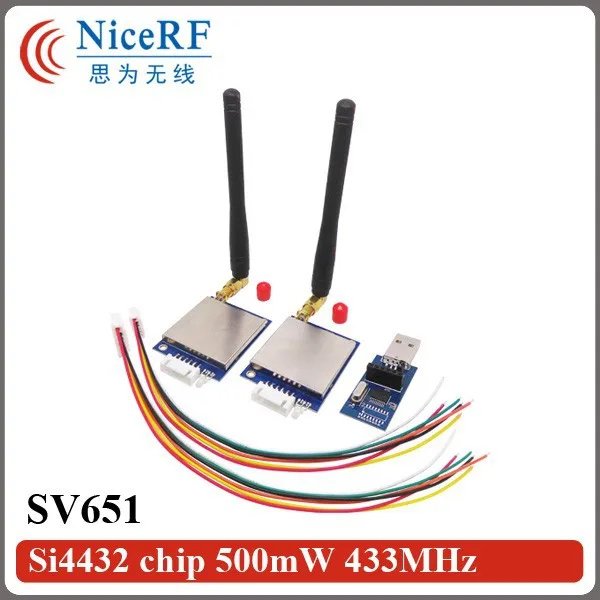

Order List

2pcs SV651 modules 868MHz /RS485 interface
2pcs SW868-WT100 Rubber Antennas
1pc RS485nterface USB bridge board
2pcs Connecting wire
